An RPM Calculator helps engineers, electricians, maintenance technicians, machine designers, PLC programmers, and students calculate the rotational speed of motors, shafts, pulleys, gears, rollers, and other rotating components. RPM means revolutions per minute and describes how many complete rotations an object makes in one minute. Rotational speed affects machine output, conveyor movement, fan airflow, pump performance, cutting speed, bearing operation, and production timing. An incorrect RPM value can reduce process performance, damage mechanical components, create excessive vibration, or cause a machine to operate outside its designed range.

This guide explains several practical ways to calculate RPM from time, frequency, motor poles, encoder pulses, pulley diameter, gear teeth, and roller surface speed. It also covers induction-motor slip, real calculation examples, measurement methods, and common mistakes found in industrial applications.

What Is an RPM Calculator?

An RPM Calculator is a mechanical and electrical calculation tool used to determine how fast a rotating part completes full revolutions. Depending on the available information, it can calculate RPM from counted revolutions, electrical frequency, encoder pulses, gear ratio, pulley ratio, or linear surface speed.

In motor applications, the calculator can determine synchronous speed from supply frequency and the number of motor poles. For an induction motor, the actual shaft speed is slightly lower than synchronous speed when the motor produces torque. This difference is known as slip.

The tool is also useful for machines in which the motor is connected to the load through belts, pulleys, gearboxes, chains, or rollers. By entering the driving speed and transmission dimensions, technicians can estimate the final output RPM before measuring it with a tachometer or encoder.

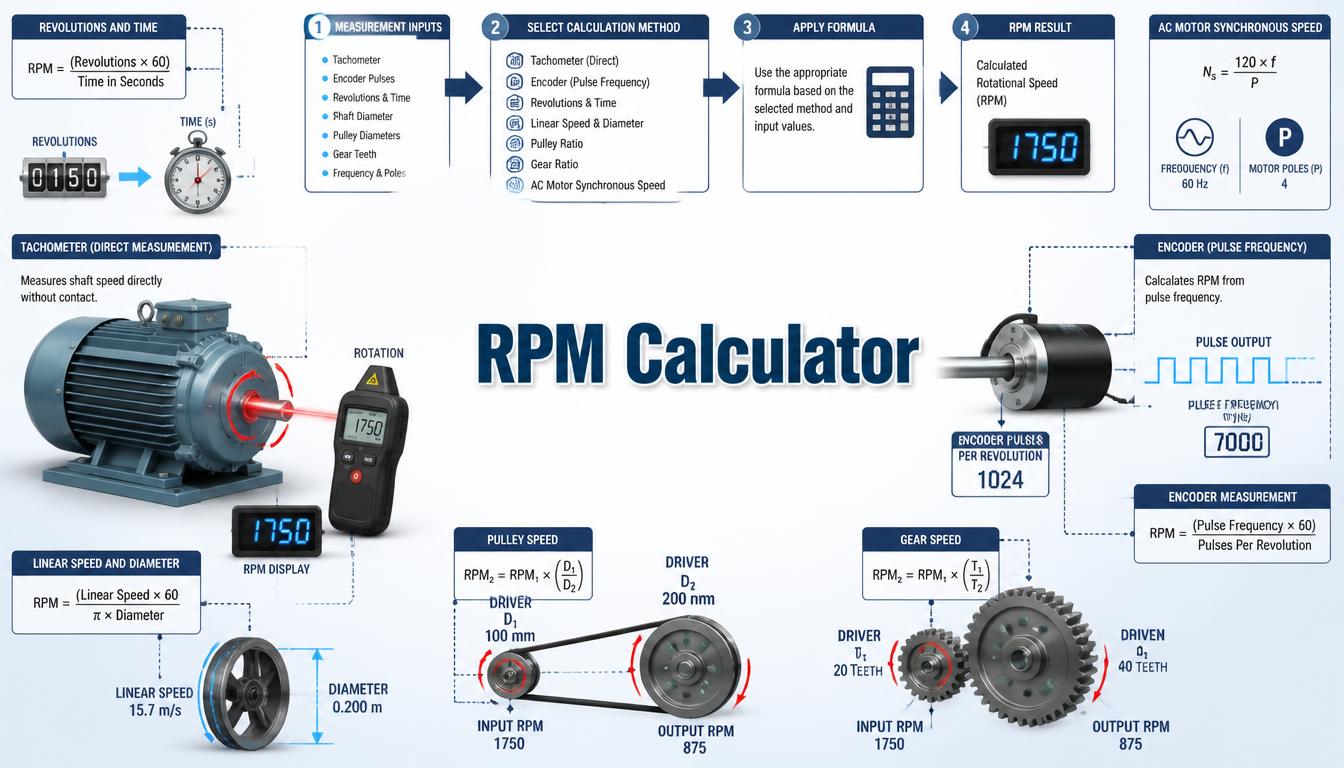

How Does an RPM Calculator Work?

The calculator first identifies which type of speed calculation is required. Each method uses a different relationship, but every result represents complete revolutions per minute. Correct units and a clear understanding of the driving and driven components are necessary.

• • Select the required RPM calculation method.

• • Enter counted revolutions and elapsed time.

• • Enter motor frequency and number of poles.

• • Enter encoder pulse frequency and pulses per revolution.

• • Enter driving and driven pulley diameters.

• • Enter the numbers of teeth on the driving and driven gears.

• • Enter roller diameter and linear speed when required.

• • Calculate and compare the result with actual machine data.

Calculated RPM represents an ideal or expected speed unless mechanical losses, motor slip, belt slip, gearbox efficiency, load changes, and control-system behaviour are included. For maintenance or commissioning work, compare the result with a tachometer, encoder, stroboscope, VFD display, or machine-monitoring system.

Step-by-Step Process

1. 1. Identify the shaft, motor, roller, gear, or pulley whose speed is required.
   2. Select the correct calculation method for the available information.
   3. Confirm whether time is entered in seconds or minutes.
   4. Confirm whether an encoder specification uses pulses, cycles, edges, or counts per revolution.
   5. For motors, enter supply frequency and the actual number of poles.
   6. For pulleys, identify the driving and driven diameters correctly.
   7. For gears, identify the driver and driven tooth counts.
   8. For rollers, convert diameter and line-speed units before calculating.
   9. Calculate the expected RPM.
   10. Compare the calculated speed with the nameplate or measured value.
   11. Investigate slip, loading, transmission losses, or measurement configuration if the difference is excessive.

RPM Calculator Formula

RPM from Revolutions and Time

RPM = N ÷ t_min

RPM = (N × 60) ÷ t_sec

When complete revolutions are counted over a measured time, divide the number of revolutions by time in minutes. If time is measured in seconds, multiply the revolution count by 60 before dividing by the number of seconds.

AC Motor Synchronous Speed

N_s = (120 × f) ÷ p

Synchronous speed is determined by electrical frequency and the number of motor poles. A 4-pole motor has a synchronous speed of 1,500 RPM at 50 Hz and 1,800 RPM at 60 Hz.

Induction Motor Slip

Slip (%) = [(N_s − N_r) ÷ N_s] × 100

N_r = N_s × (1 − s)

An induction motor must normally run below synchronous speed to produce torque. In the second formula, slip must be expressed as a decimal. For example, 3% slip is entered as 0.03.

RPM from Encoder Pulses

RPM = (60 × f_p) ÷ PPR

Pulse frequency in pulses per second is multiplied by 60 and divided by the number of pulses per revolution. Encoder configuration must be checked carefully because PPR, CPR, quadrature edges, and PLC high-speed counter settings may describe different count values.

Pulley Speed Formula

N₂ = N₁ × (D₁ ÷ D₂).

In an ideal belt drive, speed is inversely proportional to pulley diameter. A smaller driving pulley connected to a larger driven pulley reduces output speed. Actual output may be slightly lower because of belt slip and load conditions.

Gear Speed Formula

N_out = N_in × (T_driver ÷ T_driven)

For a simple pair of external gears, output speed equals input speed multiplied by the driver-to-driven tooth ratio. The driven gear rotates in the opposite direction, although the RPM calculation normally reports speed magnitude.

Roller RPM from Linear Speed

RPM = (60 × v) ÷ (π × D)

When linear speed is entered in metres per second and roller diameter in metres, the result is revolutions per minute. The effective rolling diameter should be used, including any coating, belt, product thickness, or build-up that changes the circumference.

Linear Surface Speed from RPM

v = (π × D × RPM) ÷ 60

This formula converts roller or wheel RPM into theoretical surface speed. Slip between the rotating surface and the product can cause actual line speed to differ.

RPM and Angular Velocity

ω = (2 × π × RPM) ÷ 60

RPM = (60 × ω) ÷ (2 × π)

Angular velocity is expressed in radians per second. These formulas convert between RPM and angular velocity for mechanical and motion-control calculations.

Formula Explanation

Symbol	Description
RPM	Rotational speed in revolutions per minute
N	Number of complete revolutions counted
tmin	Measurement time in minutes
tsec	Measurement time in seconds
Ns	Synchronous motor speed in RPM
Nr	Actual rotor speed in RPM
f	Electrical supply frequency in hertz
p	Total number of motor poles
s	Motor slip expressed as a decimal
fp	Encoder pulse frequency in pulses per second
PPR	Pulses generated for one shaft revolution
N1	Driving pulley speed in RPM
N2	Driven pulley speed in RPM
D1	Driving pulley diameter
D2	Driven pulley diameter
Tdriver	Number of teeth on the driving gear
Tdriven	Number of teeth on the driven gear
v	Linear surface speed in metres per second
D	Effective roller or wheel diameter in metres
ω	Angular velocity in radians per second

Common AC Motor Synchronous Speeds

Motor Poles	Speed at 50 Hz	Speed at 60 Hz
2 poles	3,000 RPM	3,600 RPM
4 poles	1,500 RPM	1,800 RPM
6 poles	1,000 RPM	1,200 RPM
8 poles	750 RPM	900 RPM
10 poles	600 RPM	720 RPM
12 poles	500 RPM	600 RPM

These are synchronous speeds. The rated full-load speed of a standard induction motor is normally lower because of slip. Always use the motor nameplate or measured shaft speed when an application requires actual operating RPM.

Interactive RPM Calculator

Use the calculator below to calculate rotational speed from motor frequency, encoder pulses, pulley ratio, gear ratio, counted revolutions, or roller surface speed.

Example 1 – Synchronous Speed and Motor Slip

Given:

• • Supply frequency = 50 Hz

• • Motor poles = 4

• • Measured rotor speed = 1,455 RPM

N_s = (120 × 50) ÷ 4 = 1,500 RPM

Slip = [(1,500 − 1,455) ÷ 1,500] × 100

Slip = 3%

The motor’s synchronous speed is 1,500 RPM, while the measured shaft speed is 1,455 RPM. The resulting slip is 3%. Induction-motor speed changes slightly with loading, voltage, frequency, rotor characteristics, and operating temperature.

Example 2 – RPM from an Encoder Signal

Given:

• • Encoder pulse frequency = 12,000 pulses per second

• • Encoder resolution = 600 pulses per revolution

RPM = (60 × 12,000) ÷ 600

RPM = 1,200

The shaft speed is 1,200 RPM when 12,000 pulses per second are measured from a 600 PPR signal. If a PLC uses quadrature edge counting, its effective count per revolution may differ from the encoder’s stated pulse value. The selected high-speed counter mode must therefore be confirmed.

Example 3 – Driven Pulley Speed

Given:

• • Motor speed = 1,440 RPM

• • Driving pulley diameter = 100 mm

• • Driven pulley diameter = 300 mm

N₂ = 1,440 × (100 ÷ 300)

N₂ = 480 RPM

The theoretical driven-pulley speed is 480 RPM. The pulley arrangement provides a 3:1 speed reduction. Actual speed may be slightly lower because of belt slip, pulley wear, belt tension, and changing mechanical load.

Example 4 – Roller RPM from Conveyor Speed

Given:

• • Required linear speed = 1.5 m/s

• • Effective roller diameter = 200 mm or 0.20 m

RPM = (60 × 1.5) ÷ (3.1416 × 0.20)

RPM ≈ 143.24

The roller must rotate at approximately 143.24 RPM to produce a theoretical surface speed of 1.5 m/s. Product slip, belt stretch, roller coating, and effective diameter changes can cause the measured line speed to differ.

Practical Field Considerations for RPM Calculations

A motor nameplate normally shows rated speed at a specified load, voltage, and frequency. This value should not be confused with synchronous speed. For an induction motor, the nameplate RPM is lower because the rotor requires slip to develop torque.

When a motor is controlled by a VFD, output frequency provides a useful speed reference but does not always provide the exact shaft RPM. Motor slip, VFD control mode, torque demand, speed feedback, and programmed motor data can affect the actual result. Encoder feedback or direct measurement is preferred where tight speed accuracy is required.

Pulley calculations assume that the belt travels without slipping. Worn belts, low tension, contamination, rapid acceleration, and high torque can create a difference between theoretical and measured speed. Use effective pitch diameters rather than relying only on the outside dimensions where the drive manufacturer specifies another reference.

Gearbox nameplates often show a nominal ratio rather than an exact output RPM. Input speed, internal gear ratio, load, backlash, and gearbox construction should be considered. For critical machinery, use the manufacturer’s actual ratio and confirm output speed with a suitable instrument.

Non-contact optical tachometers require a clean reflective target and a clear line of sight. Stroboscopes can produce convincing harmonic readings at half, double, or another multiple of the actual speed, so the operator should change the flash rate and confirm the true rotational frequency.

Applications of an RPM Calculator

Industrial Applications

• • Motor and gearbox speed calculations

• • Conveyor and roller systems

• • Pumps, fans, blowers, and compressors

• • Mixers, cutters, and packaging machines

• • Machine maintenance and vibration analysis

Automation Applications

• • PLC high-speed counter programming

• • Encoder speed feedback

• • VFD speed reference calculations

• • Servo and motion-control systems

• • Production-rate monitoring

Mechanical Applications

• • Belt and pulley drives

• • Gear and chain transmissions

• • Wheel and roller surface-speed calculations

• • Machine spindle speed

• • Rotating equipment inspection

Advantages of an RPM Calculator

• • Calculates RPM using several input methods.

• • Reduces repetitive speed calculations.

• • Supports motor, encoder, pulley, gear, and roller applications.

• • Helps compare theoretical and measured motor speed.

• • Calculates induction-motor slip.

• • Supports PLC and VFD commissioning.

• • Helps troubleshoot mechanical transmission problems.

Limitations

• • Theoretical calculations may exclude mechanical slip and losses.

• • Actual induction-motor speed changes with load.

• • VFD frequency does not always equal exact shaft speed.

• • Encoder settings can change the effective counts per revolution.

• • Pulley wear and belt tension can affect output speed.

• • Roller build-up or coating changes effective diameter.

• • Critical speeds should be confirmed with measurement.

Common Mistakes

• • Confusing revolutions per second with revolutions per minute.

• • Using motor pole pairs instead of the total number of poles.

• • Treating synchronous speed as actual induction-motor speed.

• • Using the wrong encoder PPR or CPR value.

• • Ignoring quadrature multiplication in a PLC counter.

• • Reversing the driving and driven pulley diameters.

• • Reversing the driver and driven gear tooth counts.

• • Mixing millimetres and metres in surface-speed calculations.

• • Ignoring belt or product slip.

• • Using an unverified stroboscope harmonic as actual RPM.

Related Engineering Calculators

Helpful Engineering Resources

Conclusion

An RPM Calculator provides a practical way to calculate rotational speed for motors, encoders, gears, pulleys, rollers, conveyors, and other rotating equipment. Selecting the correct calculation method is essential because every method uses different input values and assumptions.

Theoretical results can differ from actual machine speed because of induction-motor slip, belt slip, load changes, gearbox characteristics, roller diameter, and control-system settings. For commissioning, maintenance, or fault diagnosis, compare the calculated RPM with a properly configured measurement device.
